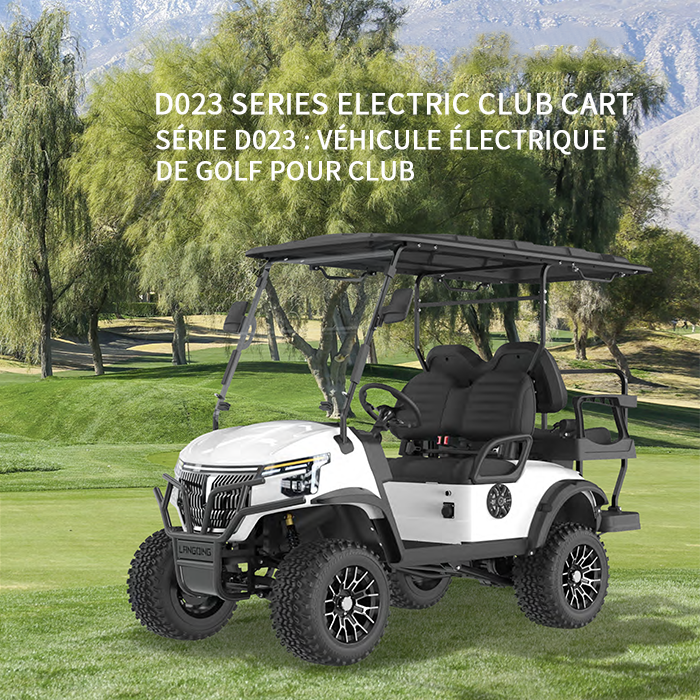

Golf Cart Series L tow or four Place

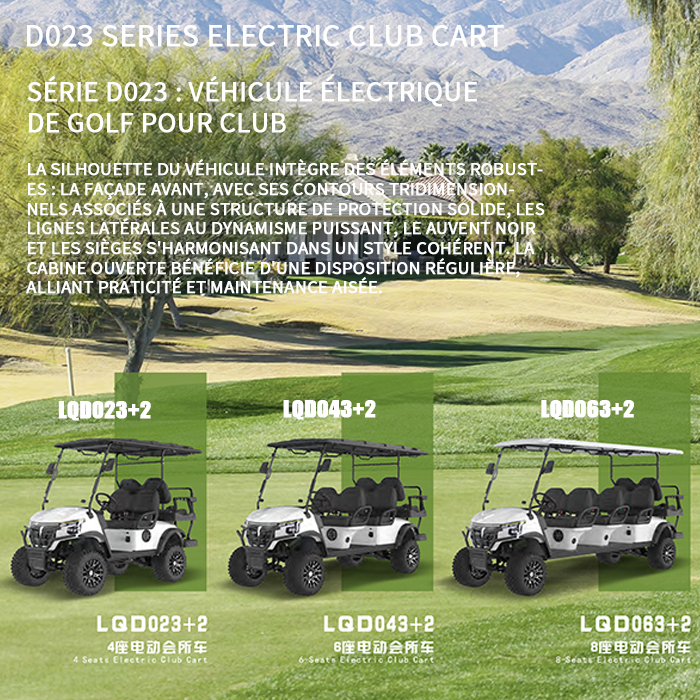

Model LQD023,LQS023,LQD043,LQS043,LQD063,LQS063 Electric Vehicle Technical Specifications

● Length × Width × Height ： 2420*1350*2020mm（two place) ; 3210*1350*2060mm (four place)

● motor power：5kw

● Battery capacity：7.2kw.h

● Maximum driving speed: 25km/h

● Driving range: 80—100km

● Maximum climbing gradient: 30%

● Minimum turning radius: 3.6m(two place), 5m(four place)

● Braking distance: ＜6.5m

● Vehicle weight (including battery): 609KG(tow place)-755KG(four place)

● Minimum ground clearance: 110mm or 180mm

● Front and rear wheelbase：1630mm - 3155mm

Vehicle Basic Configuration Table

1 Controller: Dedicated AC controller LEVD0–05M35F4/350A
2 Battery: Dedicated maintenance-free battery 8V each, 6 units, 150AH (3-hour rate)
3 Motor: Dedicated Green Pass AC asynchronous motor 48V/4KW
4 Charger: Intelligent onboard charger 48V/25A, charging time <10 hours (with 80% discharge rate)
5 DC Converter: High-power non-isolated DC-DC 48V/12V-300W
6 Front Windshield & Wiper: Acrylic organic glass; optionally tempered glass + wiper
7 Roof: Automotive-grade ABS vacuum-formed integrated roof

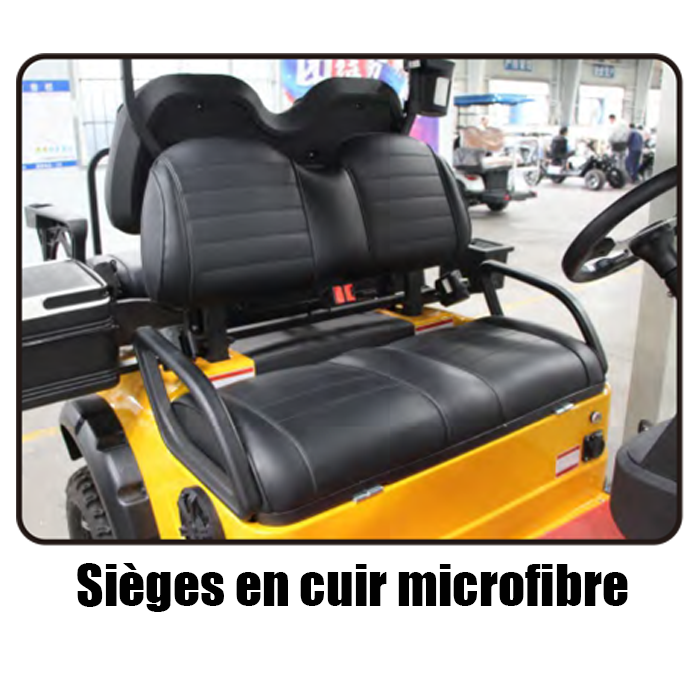

8 Seats: Ergonomic seats with leather upholstery
9 Floor: Aging-resistant rubber anti-slip floor
10 Body: Front hood, seat bucket, and body cover parts made of automotive-grade PP injection molding; roof pillars of anodized aluminum profile

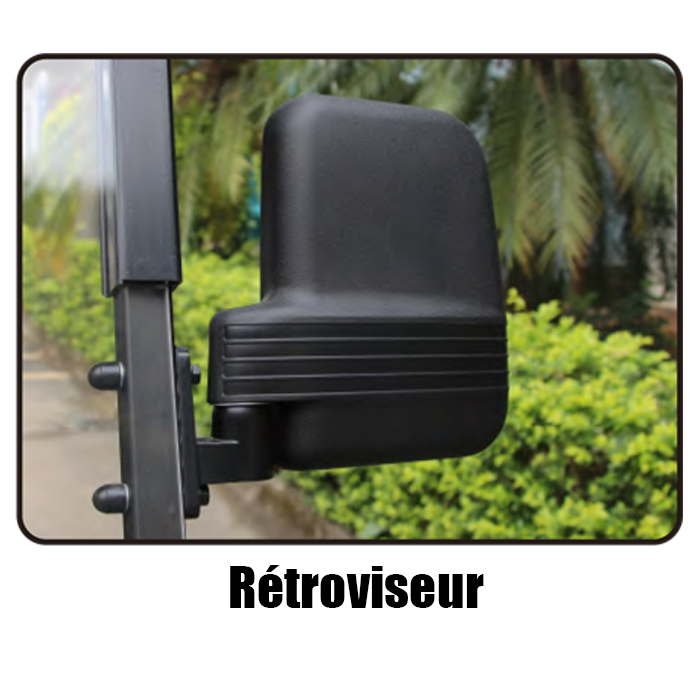

11 Rearview Mirrors: One manual adjustable, foldable exterior mirror on each side

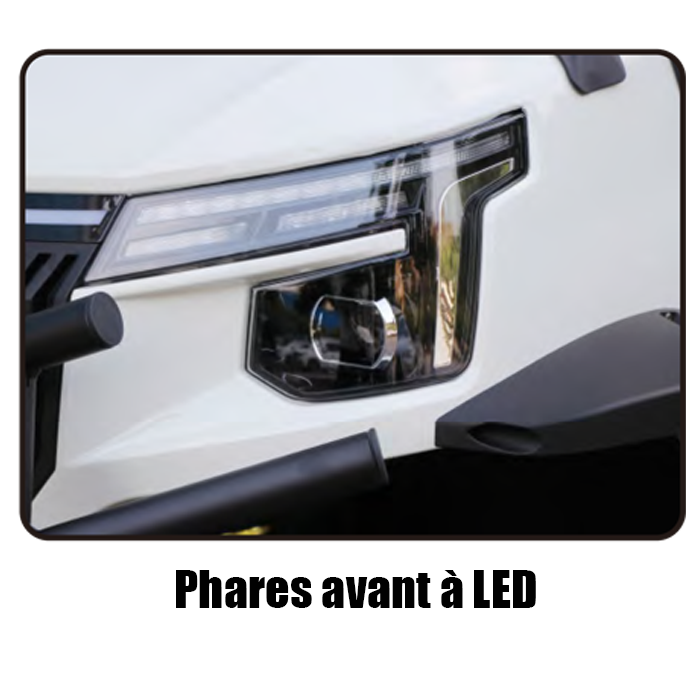

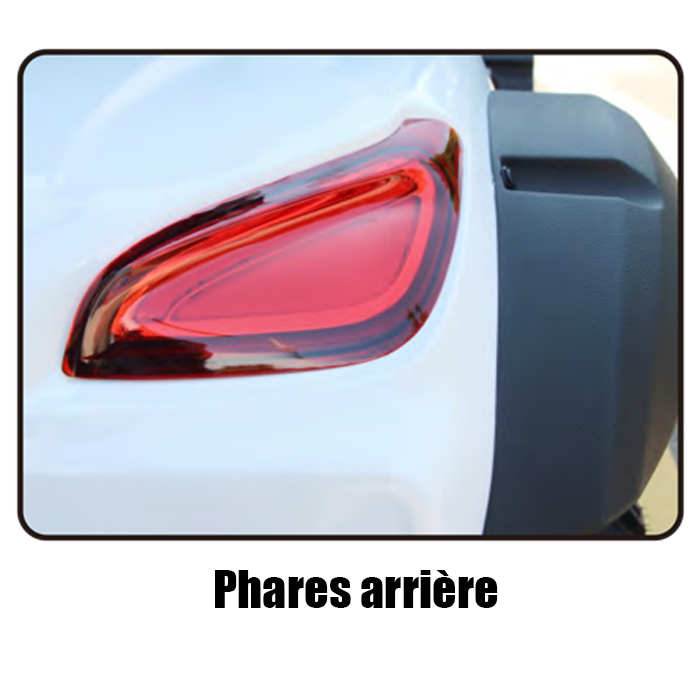

12 Lighting & Warning Signals: Front headlights, turn signals, rear position lights, brake lights, horn, and reverse voice buzzer

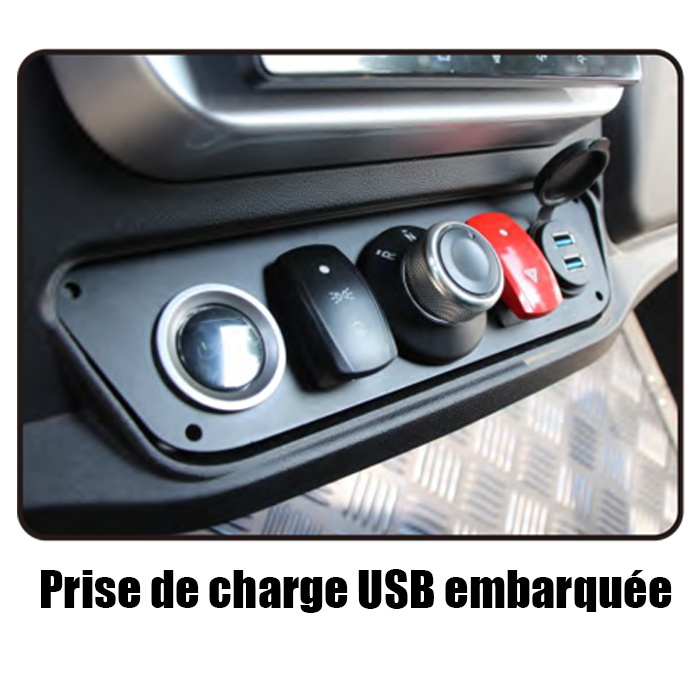

13 Dashboard: Plastic molded dashboard with power meter, electric lock switch, headlight switch, gear switch, turn signal switch, cup holder
14 Steering System: Bidirectional rack-and-pinion steering system with automatic gap compensation function
15 Braking System: Rear hub brake + composite pedal parking brake; optional electromagnetic parking brake
16 Front Suspension System: MacPherson independent suspension; coil spring + hydraulic telescopic shock absorber
17 Rear Suspension System: Solid rear axle, gear ratio 12.31:1, coil spring + hydraulic telescopic shock absorber + rear stabilizer bar
18 Tire Diameter: Dedicated golf cart tires 18*8.50-8, wheel diameter 452mm
