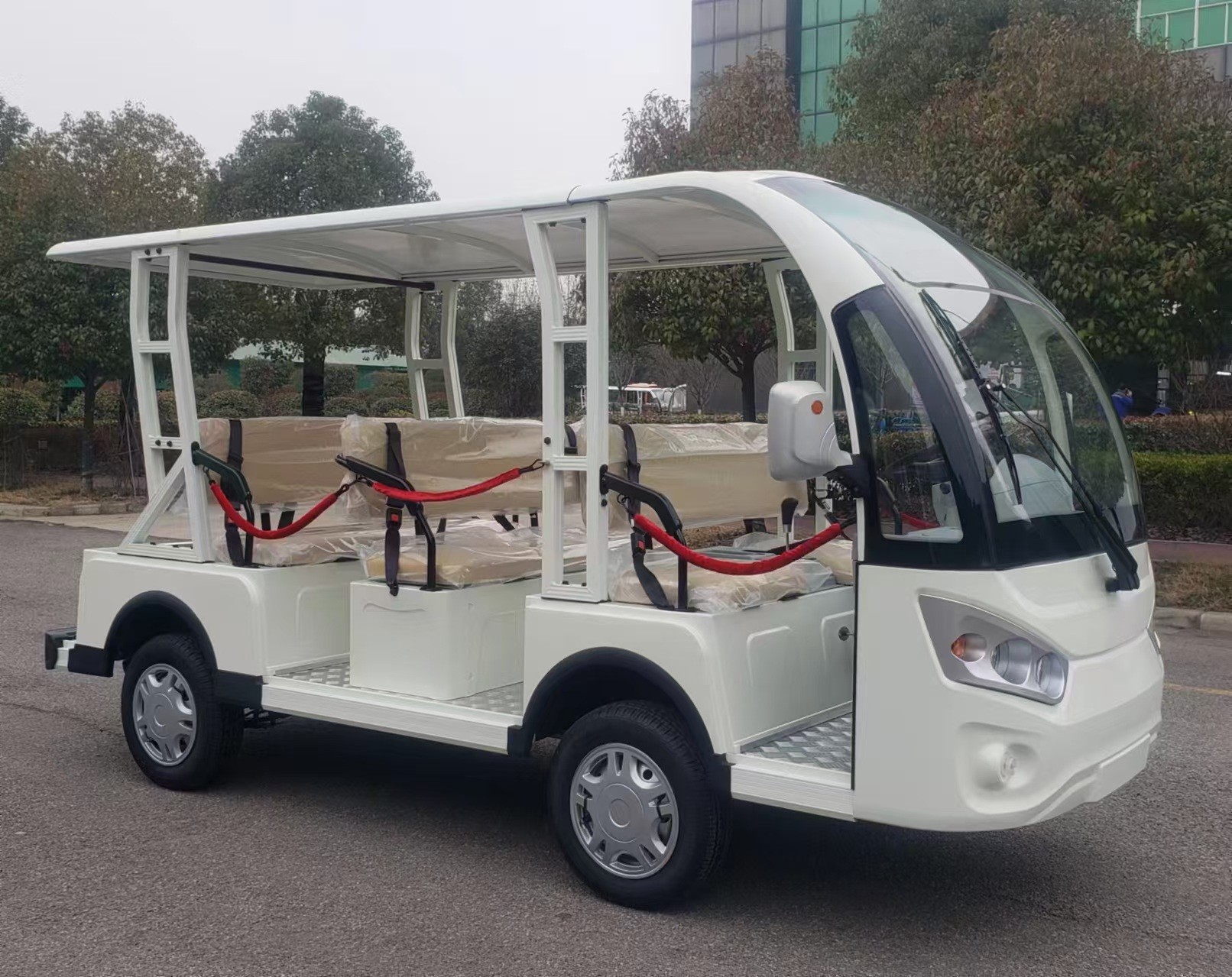

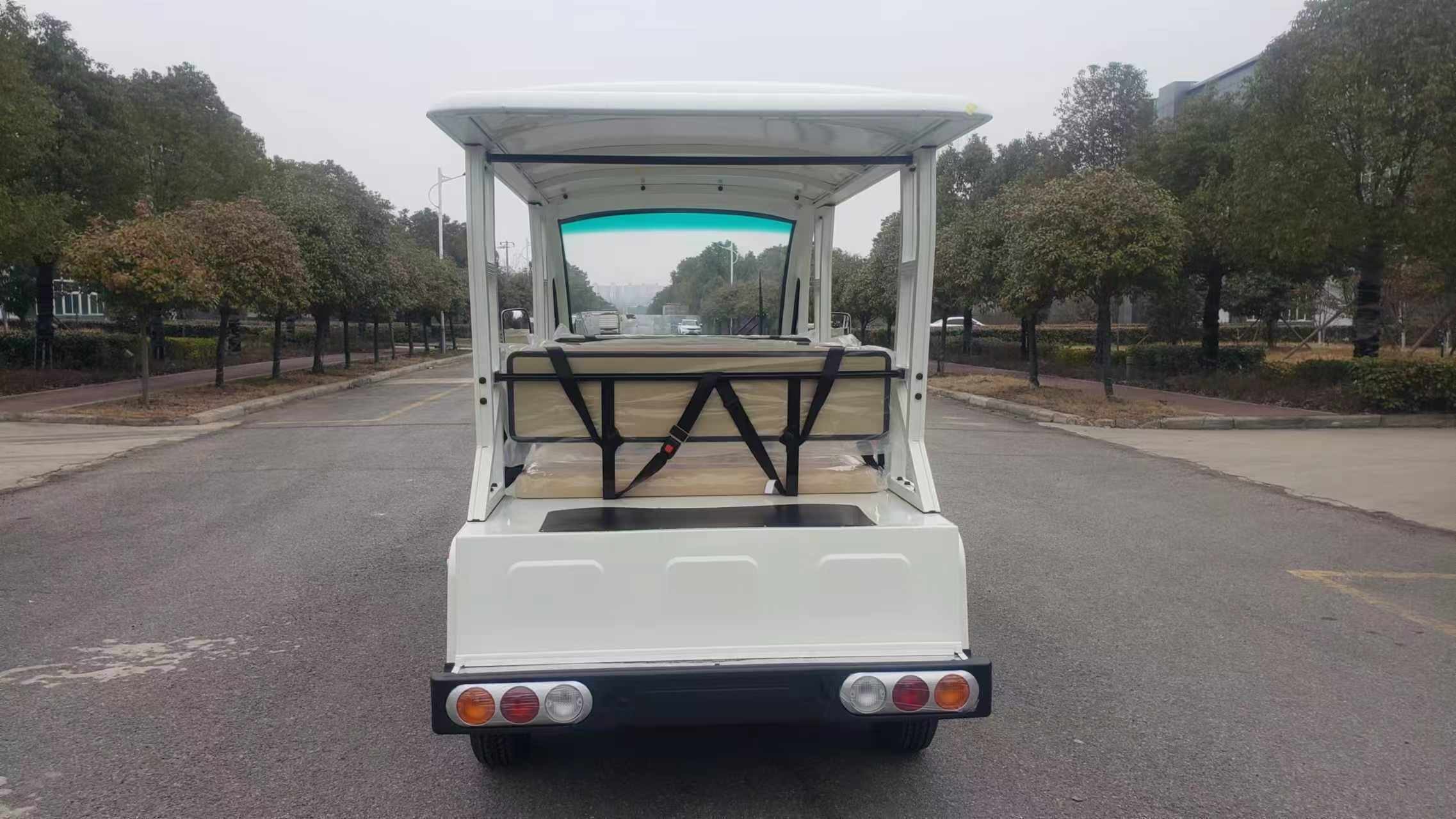

Six or eight place golf car series S
Six or eight place golf car series S
Six or eight place golf car series S
Six or eight place Electric Vehicle Technical Specifications
● Length × Width × Height ： 3900*1500*2050mm
● Maximum driving speed: 30km/h
● Driving range: 80—100km
● Maximum climbing gradient: 15%
● Minimum turning radius: 4.8m
● Braking distance: ＜5m
● Vehicle weight (including battery): 1160kg
● Minimum ground clearance: 85mm
● Front and rear wheelbase：1285/1325mm
● Tire specifications:165/70R13
● Place:6/8
● Body structure：Sheet metal stamping parts + aluminum profile frame + plastic cover parts
● Front and rear suspension systems：Front: MacPherson strut independent suspension
Rear: Leaf spring non-independent suspension
● Braking system：Front disc and rear drum + hydraulic dual-line + vacuum booster
●steering system：Dual-output steering gear + electric power steering
● Battery Capacity: 6V 200Ah (3hr), 48/200ah
● Motor Power: DC 48V/5kW
● After-sales Service: Free on-site service from the date of product acceptance; one-year warranty; two-year battery warranty; lifetime product maintenance.
● Includes one charger, one waterproof floor mat, one set of vehicle tools, one driver's manual, one certificate of conformity, free sign making, and one set of sunshade.
